The base of any dependable commercial linen chute rests on its material build. We firmly suggest using stainless steel 304 or 316 for making garbage chutes and linen chute. Stainless steel resists moisture, acids, and alkalis in waste. This matters a lot in damp settings like hospitals and hotels. The strength of stainless steel leads to a lengthy lifespan. It also needs little upkeep.
Another key aspect is the thickness, or gauge, of the steel. The following material thicknesses are available: 1.2mm (18 Gauge), 1.5mm (16 Gauge), 2.0mm (14 Gauge), 3.0mm (11 Gauge). QDCE suggests a 1.5mm thickness. It offers a good mix of affordability and lasting strength in business uses.
Plus, our products fully meet NFPA standards. We have passed ISO9001 certification and UL-10B fire-rated test. This confirms they satisfy vital fire safety needs. Fire-rated materials are vital. They stop fire from spreading through vertical shafts.

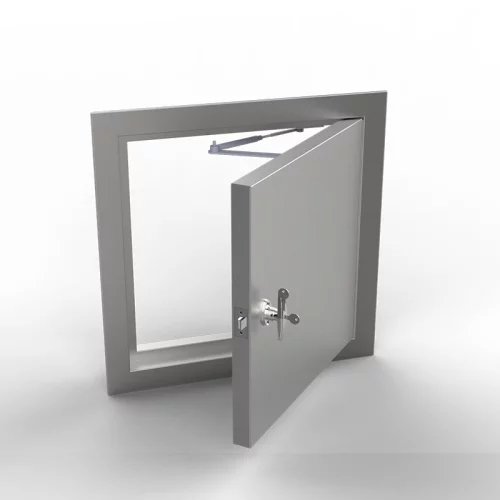

The intake door serves as the user point for the linen chute system. Intake doors can be Bottom Hinged or Left/Right Hinged. They are hand-operated, self-closing, and positive latching. Side-hinged doors are usually simpler for workers to use with large linens. Bottom-hinged types work better for gravity-fed drops.
QDCE intake doors come from 304 stainless steel. They have 1.5mm thickness. They provide several handle choices, such as T-handle or L-handle for ADA compliance. All parts can be fully taken apart while fixed in the wall. This lets every part get cleaned, fixed, or swapped easily.
Security and fire protection improve with UL fire-rated 1-1/2 hour certification. Intumescent strips add sound reduction and extra fire resistance.
Discharge doors need to manage heavy linen loads without getting stuck. QDCE provides two kinds of discharge doors:
1. Rolling Incline Type Discharge Door
2. Hopper Type Discharge Door
Both have UL-listed 165°F fusible links. These links shut the door automatically if fire occurs. The designs allow easy connection with laundry carts or sorters. This supports smooth gathering and handling processes.
Containing fire is extremely important in vertical shaft setups like linen chutes. QDCE adds several safety layers:
· Automatic fire dampers start working when heat rises. They help contain fires.
· Fusible links melt at 165°F. This causes door closure to block flames.
· Following NFPA codes is key to setting up approval.
These parts make QDCE’s commercial linen chute systems better at reducing risks. They stand out from other vendors who lack full fire-rated parts.
Good venting is essential to avoid odor buildup. It also keeps the indoor air fresh. The vent's role is to release smells. It also clears hot gases if fire starts inside the chute.
QDCE’s vent assembly contains:
· 304 stainless steel body with 1.5mm thickness
· Weather cap
· Exhaust fan
· Glass wool insulation
These elements keep negative airflow steady. They cut down on airborne germs spreading. This is a major need in healthcare settings.
QDCE offers optional sprinklers placed right inside the chute shaft. These systems:
· Turn on through building-wide control panels
· Work with smoke and heat detectors
· Get handled from the main control panel for the united emergency action
Features like these often lack in products from basic manufacturers.
Chute size must match the amount of linen and the building's size. Our chutes come in standard internal diameters: 14” to 40” (350mm to 1000mm).
But the NFPA demands a minimum diameter of 24 inches (600mm). QDCE also allows custom diameters from client drawings.
Chute routes can be direct or offset. Offset Chutes use double bends at 15°, 30°, or 45° angles. This boosts options in upgrade projects or buildings with tight shaft areas.
Linen chutes often pass near guest rooms or patient zones. Noise control is necessary. QDCE handles this by:
· Putting sound-absorbing coating on both the intake and vertical chute parts
· Fitting anti-vibration mounts to stop noise from traveling through structures
This suits QDCE linen chute systems well for hotels and hospitals. In those places, noise affects comfort scores.
Steady cleaning is crucial for cleanliness and fire avoidance. QDCE supplies:
· Access panels are placed above the top intakes. They allow simple checks of valves and spray heads.
· Smooth inner surfaces without bumps that might hold lint or dirt
These traits lower how often maintenance happens. They also raise cleanliness levels.
QDCE fits its chute systems with flushing heads. These can run by hand or on their own. When turned on, water mixed with disinfectant sprays the chute's inside for 20 minutes.
Automatic versions allow set cycles. They fit facilities that want tight infection control.
To stop wrong use or overlapping actions:
· QDCE provides two kinds of interlocking systems: Safe-Type and Secure-Type
· Interlocks turn on during cleaning, disinfection, bin replacement, or fire alarm times
These add to safety rules. They prove very useful in group settings.
Modern facilities might gain from extra sensors:
· They spot usage amounts
· They set off alerts for upkeep
· They watch bin conditions
Such tools give hints for upkeep ahead of time. Many usual linen chute manufacturers do not supply them.
QDCE aids upgrade cases with adjustable offset setups and flexible intake sizes. Their engineering group gives 3D drawings based on real site details. This avoids wrong fits during setup. As a result, it ensures easier blending into old structures.
Smooth linking with:
· HVAC (for airflow)
· Fire suppression (sprinklers/detectors)
· Laundry operations (bin detection, sorters)
This makes sure all parts work as a single unit. It is key in tall buildings.

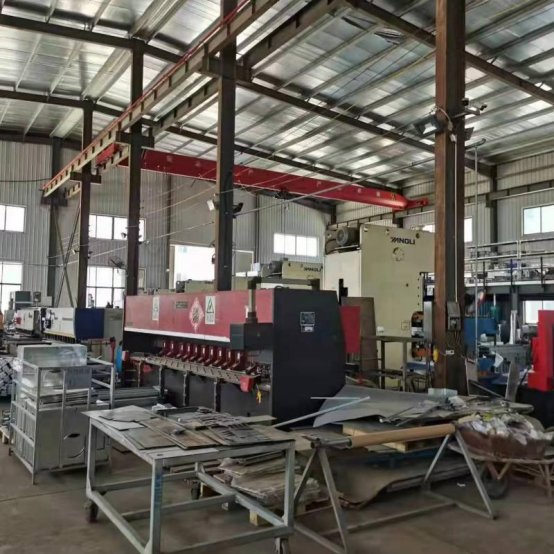

By using the ISO9001 Quality Management System, QDCE keeps steady quality in all items. Each unit goes through tough performance tests and strength checks before shipping.
Many companies stick to set specs. QDCE sets itself apart by giving tailor-made fixes for unusual needs. These include custom door finishes (mirror, bronze), intake sizes, chute angles, and interlock types.
Unlike some, QDCE supports its systems with pre-sales advice, setup help, and post-sales care. We also promise to keep accessories in stock for ten years. This is a big help in long-range building plans.

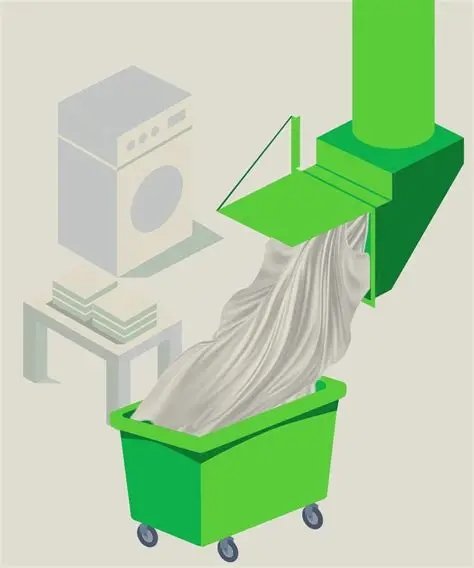

A linen chute system is a vertical shaft that allows soiled linens to be transported from upper floors to a centralized collection point like a laundry room, commonly used in hotels and hospitals.
Maintenance includes regular cleaning using flushing heads or brush systems, checking fusible links on discharge doors, inspecting interlock systems, and ensuring vents remain unblocked.
QDCE uses stainless steel 304/316 with a 1.5mm thickness, offers UL fire-rated doors, customized sizing options, smart monitoring features, and full NFPA compliance—distinguishing them from other linen chute manufacturers.
No. Trash and linen chutes should be separated due to hygiene regulations. However, multi-sorter systems can help manage different waste streams from one vertical shaft if designed appropriately.
It depends on usage volume but typically once every week or bi-weekly using automatic flushing systems and manual inspections through access doors.
