When planning tall home setups or wide business areas, handling waste ranks as a key part of the setup. It needs careful thought. The smooth work of a building's waste drop system depends a lot on picking the right trash chutes. The correct rubbish chute size makes sure the setup deals with everyday waste loads. It avoids common jams. Plus, it follows the tight world fire and safety rules.

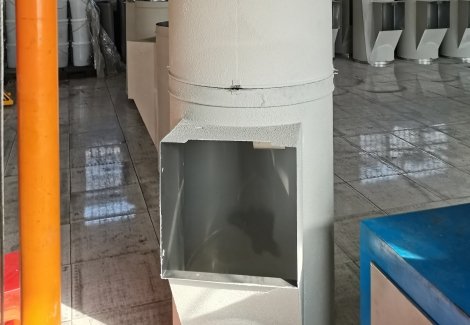

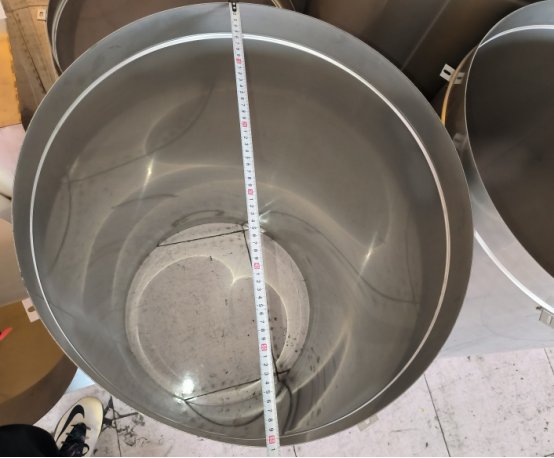

In worldwide building and design work, garbage chute dimensions in meters serve as the usual measure for fitting with the structure. The inside width of a chute stands as the main way to size it. For common uses, the width goes from 0.5 meters to 0.9 meters.

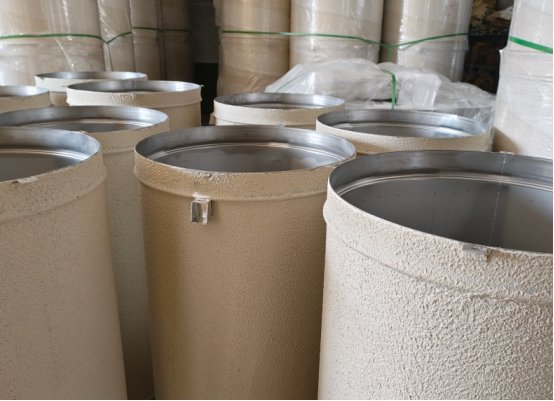

Building Type | Typical Diameter (Meters) | Recommended Use |
Low-rise Residential | 0.5m - 0.6m | Small bags, limited floor count |
Standard Apartment Trash Chute | 0.6m | Standard household waste bags |
Commercial/Hospital | 0.75m - 0.9m | Larger bags, bulky items, linens |
Going under 0.5 meters for the width is not wise in most cases. It raises the chance of stops from regular kitchen bags. On the other hand, over 0.9 meters in a home area might cause too much air pull and sound problems. At Qingdao Chute Equipment Co., Ltd. (QDCE), we focus on tweaking sizes to fit exact job needs fully.
The width of a chute does not come just from the building's height. It ties to the planned amount and kind of waste.
Waste Volume and Occupancy
In a busy trash chute apartment spot, people use it more often. The field norm for most home buildings is a 24-inch (about 0.6m) chute. But in business buildings or hotels, folks toss big packs or cloth items. So a 30-inch or 36-inch (0.75m to 0.9m) width often fits better. This stops "bridging," where waste sticks across the chute's width.
Intake Door Compatibility
The drop door size has to be a bit smaller than the chute width. This keeps users from pushing in things too large for the path. For a usual 24-inch chute, a typical drop door measure is 15" x 18" or 18" x 18". Our drop doors use 16-gauge brushed stainless steel. This makes them tough against hits from heavy bags.
For apartment trash chutes, lasting strength and fire guard matter as much as the size measures. New setups mostly use 16-gauge stainless steel (SS304 or SS316). The reason is its strong fight against rust and firm build.
Material Gauges and Performance
16 Gauge (1.5mm): The usual pick for home and business jobs. It balances price and lasting power well.
14 Gauge (2.0mm): Fits high-hit spots or base parts of very tall buildings. There, falling waste speeds up the most.
11 Gauge (3.0mm): Saved for tough work sites or building waste handling.
The chute's size must leave room for safety parts too. Rules from the National Fire Protection Association (NFPA) call for clear space around spray heads and fire blocks.
Discharge Door Variations
The end spot of the chute, called the discharge door, acts as a main safety stop. Two main kinds exist:
Sliding Discharge: Often spring-set and kept open by a 74°C (165°F) melt link. This works when waste falls right into a container.
Hopper Type Discharge: Fits when a 90° turn goes through a wall. These doors hold a "B" label for fire guard.
Venting Requirements
To handle smells and air push, trash chutes need to go past the roof. These air outs match the chute width. They come with a metal cover for weather and roof seals.
Besides the main tube, a smart waste setup adds electric and machine parts. These make the daily use better for everyone.
Intake Door Varieties
New buildings shift from basic hand doors to special picks:
Interlock Doors: Stop more than one door from opening together. This keeps the fire block and cuts accident risks.
Foot-Pedal Doors: Boost clean habits with no-hand use.
Sorter Systems: Let folks pick "Recycle," "Compost," or "Garbage" at the drop. A motor switch at the base sends waste to the right spot.
Maintenance and Hygiene
To keep the setup going long, Qingdao Chute Equipment Co., Ltd. adds 1/2" auto brass spray heads and wash heads. They go to the chute top and every other floor. This follows local fire rules.
Picking the right rubbish chute size means looking closely at the building's people load, waste kinds, and area safety laws. If you set up a standard apartment trash chute or a full sorter for a business high-rise, material quality counts big. That means using 16-gauge stainless steel. And exact size measures matter too. Sticking to world rules like NFPA-82 helps. So does picking a maker with solid build know-how. This way, builders get a waste system that runs well, stays safe, and holds up for years.
The field norm for home buildings is 24 inches (about 0.6 meters). This fits regular kitchen waste bags. It also cuts the chance of stops.
Good smell control needs a mix of strong seal strips on drop doors, a working roof air out for pull-up flow, and steady use of a built-in wash and clean head setup.
A top drop door needs UL stamps with at least a 1.5-hour fire hold. It should close and latch on its own. This keeps the fire stop always in place.
Yes. Qingdao Chute Equipment Co., Ltd. gives custom drawings and 3D views. They tweak the chute width, turns, and drop door sizes to match odd site setups.
Other stuff exists, but 16-gauge stainless steel (304 or 316 type) stands as the pro pick. It takes hits well, cleans easily, and handles the eating power of plant waste.
