Waste handling works best when the chute, control panel, safety devices, and compactor operate as one system. In high-rise buildings, hotels, hospitals, and mixed-use properties, this integration reduces manual handling, improves hygiene, and gives facility teams better control over daily waste flow.

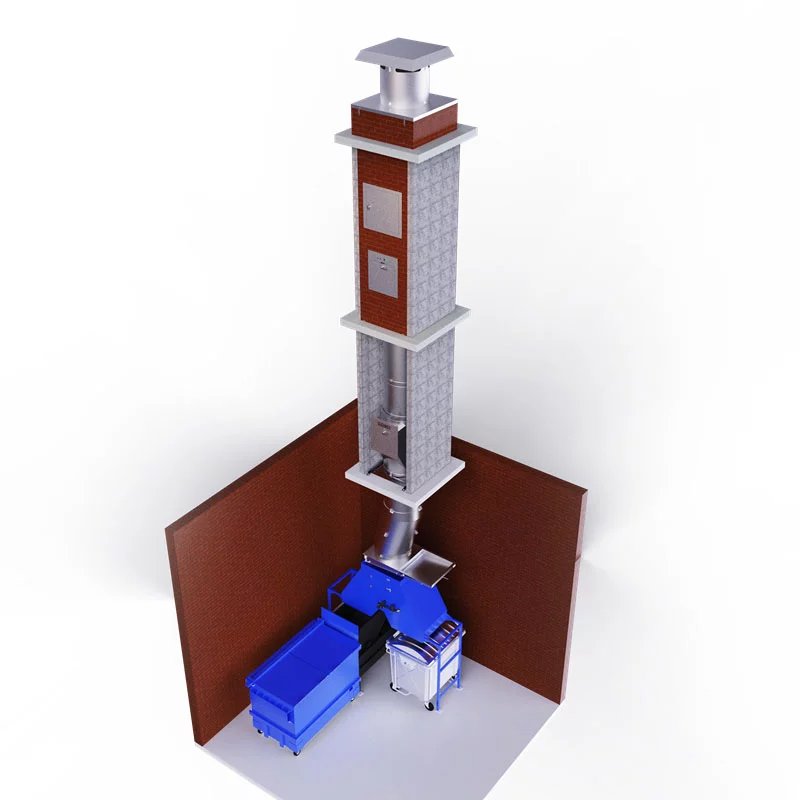

A chute system creates a controlled gravity-fed path from each occupied floor to a collection room at the lower level. Residents or staff place bagged waste through self-closing intake doors, and the waste drops through a smooth vertical chute section into a transition hopper above the compactor. The design looks simple from the corridor, but the performance depends on careful coordination between diameter, door size, inner-wall finish, fire protection, airflow, and bottom discharge equipment.
System Area | Typical Specification | Practical Purpose |
Standard chute diameter | Customizable | Supports reliable gravity flow in many building applications |
Material thickness | 1.2 mm to 3.0 mm | Matches expected load, impact, and budget |
Recommended building thickness | 1.5 mm | Balances strength and cost for many projects |
Intake door material | 304 stainless steel, 1.5 mm | Improves fire resistance, hygiene, and serviceability |
Compactor cycle time | About 30 seconds | Keeps up with periodic waste drops from the chute |
Compaction ratio | Up to 4:1 | Reduces container volume and pickup frequency |
Intake doors do more than provide an opening for waste. They protect the shaft, limit odor movement, support fire-rated construction, and help prevent unsafe simultaneous use.
Interlocking is one of the most important safety functions in a modern chute system. When one intake door opens, the other doors can be locked until the operation is complete. This prevents multiple floor openings from being active at the same time and reduces risk during compactor cycling, cleaning, disinfection, maintenance, bin replacement, smoke detection, or emergency shutdown. A control panel can show green, red, or yellow status indicators so users and maintenance teams understand whether the chute is ready, busy, or under service.
Fire safety is not an accessory in a garbage chute design. It is part of the operating logic. Intake doors may use fire-rated latching mechanisms and intumescent strips, while discharge doors protect the collection room interface. QDCE provides fire cutoff doors and discharge doors held open by fusible links. When the ambient temperature reaches the rated trigger point, such as 165°F / 74°C for certain discharge doors, the link melts and the door closes to separate the chute from the collection room.

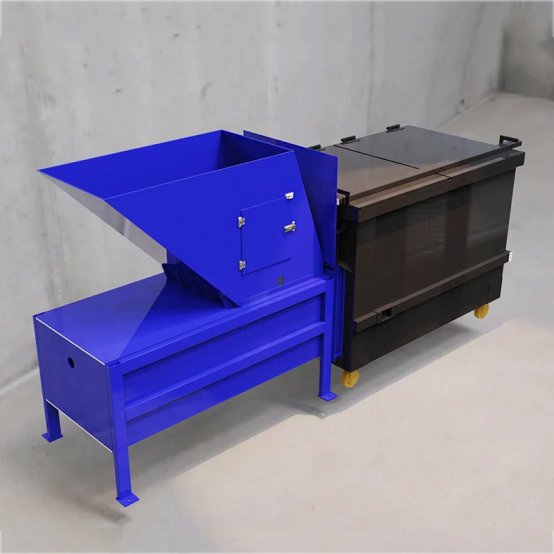

A garbage compactor connected to a chute receives waste through a transition hopper, moves it into the charge box, and compresses it into a container. In QDCE’s apartment compactor configuration, the system is suitable for small apartment buildings, hospitals, nursing homes, and high-rise chute rooms where space is limited and waste must be handled at street level or basement level.
The compactor converts loose refuse into a denser load by driving a ram through the compaction chamber. QDCE technical data includes a 5 HP motor, a 4.6 GPM/6 GPM hydraulic pump, normal operating pressure around 1700 PSI,and maximum rated pressure up to 2000 PSI. A complete reciprocating cycle takes about 30 seconds. The ram height is 18 in., the ram penetration is 5 in., and the chamber width is 30 in., giving the machine the force and travel needed to move bagged waste into the container.
A photo-eye start system can begin the cycle automatically when material reaches the chamber. Full-container indicators can alert staff at 80% and 100% capacity, reducing the chance of overflow. A hopper access door with interlock supports chute-fed or hand-feed applications while preventing unsafe operation when access panels are open.

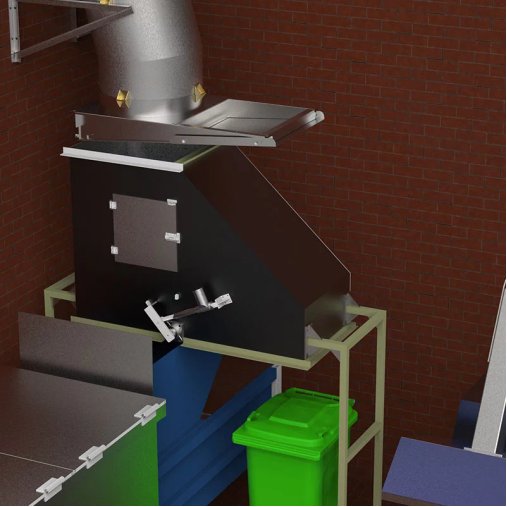

The most important connection point is where the chute outlet meets the compactor hopper. If the hopper is too narrow, too shallow, poorly aligned, or mismatched to the ram cycle, waste can scatter, bridge, or jam before it reaches the chamber. A well-designed transition hopper guides falling bags into the correct impact zone, keeping the collection room cleaner and helping the compactor operate at its intended capacity.
A chute and compactor system should be maintained as one working asset. Facility teams should inspect intake doors, latches, interlocks, indicator lights, access panels, discharge doors, photo-eyes, container locks, hydraulic components, and cleaning systems on a planned schedule. Waste users should avoid flammable, explosive, toxic, hazardous, or oversized items, and bagged waste should be sealed to reduce leakage.
QDCE supports projects with shop drawings,drawings based on site conditions, installation guidance, video support, and after-sales service. We also maintain accessory availability for long-term service needs, including doors, handles, latches, chute sections, sorters, compactors, and related parts.
For a new building, renovation, or chute room upgrade, share your drawings, floor count, waste room size, chute diameter, and target waste streams with our team. You can request a compactor solution through QDCE Compactor or review integrated options at Trash Bin Compactor System. We can help match the chute system, hopper, compactor, controls, and safety devices to the actual site.
The main benefit is volume reduction at the collection point. Waste drops through the chute, enters the compactor hopper, and is compressed into a container, which can reduce hauling frequency, improve room cleanliness, and lower daily handling work.
A chute-fed compactor can start when a photo-eye detects waste in the chamber. The ram moves forward to push the waste into the container, retracts after the cycle, and waits for the next load.
Yes. A bi-sorter or tri-sorter can direct different waste streams to separate containers or compactors. Users select the waste type at the intake door, and the diverter routes the material at the bottom.
It depends on the project. A pneumatic waste collection system is useful for large sites that need centralized transport and reduced local storage, while a chute-fed compactor is often more cost-effective for single buildings and standard high-rise projects.
