Precise measurement of linen and trash chute doors plays a key role in guaranteeing safety, fire standards, and correct setup. These chute doors serve as more than simple entryways. They act as vital fire-resistant parts that shield tall buildings from smoke and fire expansion. Even a minor error in the measuring stage might cause major troubles. For instance, it could lead to poor alignment with the chute shaft, noticeable gaps in the air, or loss of fire protection.
Typical issues from wrong chute door dimensions often include challenges in sealing, lower cleanliness from leaks, intake doors that fail to shut right, and even expensive changes done right on site.
This guide is intended to help you identify the correct size and door style for trash or linen chute door replacement projects. With a comprehensive selection of chute doors, QDCE provides practical support to ensure proper fit and reliable application.
A chute intake door provides the entry spot where waste or linens go into a vertical shaft setup. In apartment garbage chutes or hospital linen systems, this door links to the throat area. That throat connects straight to the primary chute body.
Our self-closing intake doors are made from 16-gauge brushed stainless steel on both front and back. These doors hold an important job in keeping the fire rating of the shaft intact. They also stop odors from escaping into nearby spaces.
Linen chutes usually appear in hospitals and hotels. There, cleanliness and low noise matter most. Trash chutes show up more in home buildings. They need to manage tougher items.

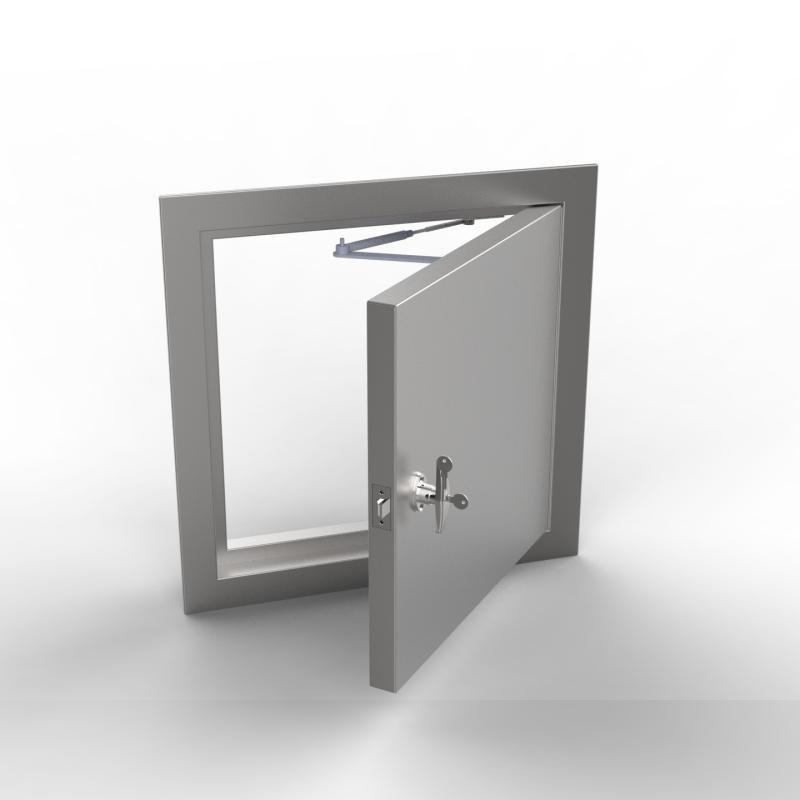

Trash chute doors commonly have bottom-hinged styles and sturdy handles such as T-handles. On the other hand, linen chute doors might use side-hinged designs to cut down noise when opening. Each door includes a chrome-plated T-handle with lock & two keys. But L-handles work too, to fit ADA rules.
Hygiene varies between the two uses. Linen chutes demand smoother inside surfaces. This helps avoid fabric catches and germ growth. Usage rates differ as well. Trash chutes face more daily action.
Before you start any measurements for a trash chute door or linen chute intake, collect these essential facts:
· Chute internal diameter: The NFPA calls for at least 24″ (600 mm) for usual vertical chutes.
· Door type: Figure out if you require bottom-hinged or side-hinged doors.
· Fire-rating requirements: UL fire-rated latching mechanism and stainless steel pivot hinge are needed for rules in most areas.
· Wall structure: Think about wall finish depth, like tile or concrete, which impacts door frame depth.
Key measurement data are as follows:
Rough Wall Opening/ Chute throat size
Clear opening dimension of the door/Outer dimension of the door’s rear end
Begin by checking the basic opening in the wall for the intake door installation:

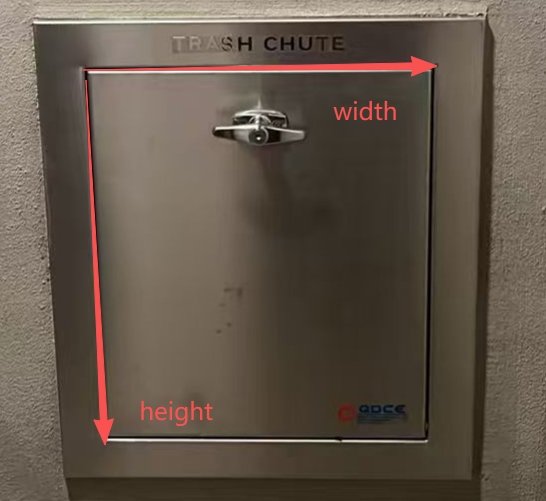

· Check the width and height from finished wall to finished wall.
· Confirm squareness: Use a level to ensure the opening isn't slanted, which could cause the door to stick.
· Account for finishes: Factor in any changes in wall thickness from tile covering or drywall layers.
· Apply Positive Tolerance: Ensure the wall opening is slightly larger (approx. +5 mm) than the door’s rear end to allow for easy insertion and the application of fire seals.
The throat section ties the intake door to the main chute body. This size has to match exactly:
· Check both the width and height of the opening at the throat flange.
· Make sure the door opening goes a bit over the throat edge. This forms a tight seal.
· Steer clear of any area shrink that might block trash or linen movement.
Bad alignment between the door opening and throat often creates tight spots. Those spots can slow down the flow of trash or linens.
The frame depth decides how even the door will rest against the wall:
· Check the entire wall thickness, including tile or other finishes.
· Keep in mind that lowballing this depth might lead to gaps or a shaky setup.
Skip these usual slip-ups when sizing your trash chute door:
· Checking just the panel, not the whole frame.
· Overlooking the finished wall thickness, which changes frame depth.
· Thinking chute diameter matches the door opening exactly. They connect but differ.
· Forgetting enough space for fire seals or hinge action.
Custom intake door sizes prove useful in certain cases:
· Dealing with unusual wall setups like double-layer drywall or brick facing.
· Updating older buildings where current chutes miss modern standards.
· Managing wet areas like spas or kitchens where rust resistance counts.
· Fitting advanced sorting or access-control into the intake unit.
Garbage chute doors are not limited to a single standard size. A wide range of dimensions is available in QDCE, and all door sizes can be customized to match real project conditions. During installation, factors such as wall construction, finish thickness, fire-rating requirements, and building regulations must be evaluated on a case-by-case basis. For special wall structures or non-standard buildings, our technical team will review the site conditions in detail and provide tailored recommendations. With professional drawings and engineering guidance, you can ensure the chute door fits precisely, installs smoothly, and complies fully with safety and architectural requirements.
Before you order your garbage chute door or linen intake panel, verify these main items:
✔ Chute internal diameter
✔ Door hinge side and swing direction
✔ Wall finish thickness (tile, gypsum board)
✔ Fire-rating certification
✔ Handle type and ADA requirements
✔ Presence of interlock or control units
Going over these points twice prevents hold-ups and extra work at install time.
Chute doors, whether trash chute discharge doors or linen intake panels, stand as key engineering pieces. They focus on fire safety, cleanliness, and strong mechanics. Products follow fire safety, environmental, and global quality rules in design and production. Handle them carefully during planning.
Stick to exact site measurements always. Consult the pro drawings before locking in orders. Putting time into planning brings smooth setup, longer use, and happier users.
A trash chute is a vertical shaft in multi-story buildings used to transport waste from upper floors to a centralized collection point below.
Measure the rough wall opening width/height, throat opening size at the flange, and total wall thickness for frame depth. Refer to this guide’s step-by-step instructions under “How to measure trash chute door”.
Linen chute doors are often used in hotels/hospitals with hygiene features, while garbage chute doors handle solid waste with more durable hardware.
Yes, most building codes require UL fire-rated garbage chute doors with self-latching mechanisms to prevent smoke/fire spread across floors.
Not always — older buildings, special finishes, or smart systems may need custom measurements for proper fit and compliance.
