A trash chute system is a waste collection channel installed in high-rise buildings, widely used in residential buildings, office towers, shopping malls, and public facilities. It allows residents to dispose of their garbage from any floor by dropping it into a vertical shaft that leads to a centralized collection point at the bottom. It allows efficient and safe disposal of waste through gravity. This gravity-fed design eliminates the need for transporting waste manually down staircases or elevators, greatly simplifying daily waste handling.

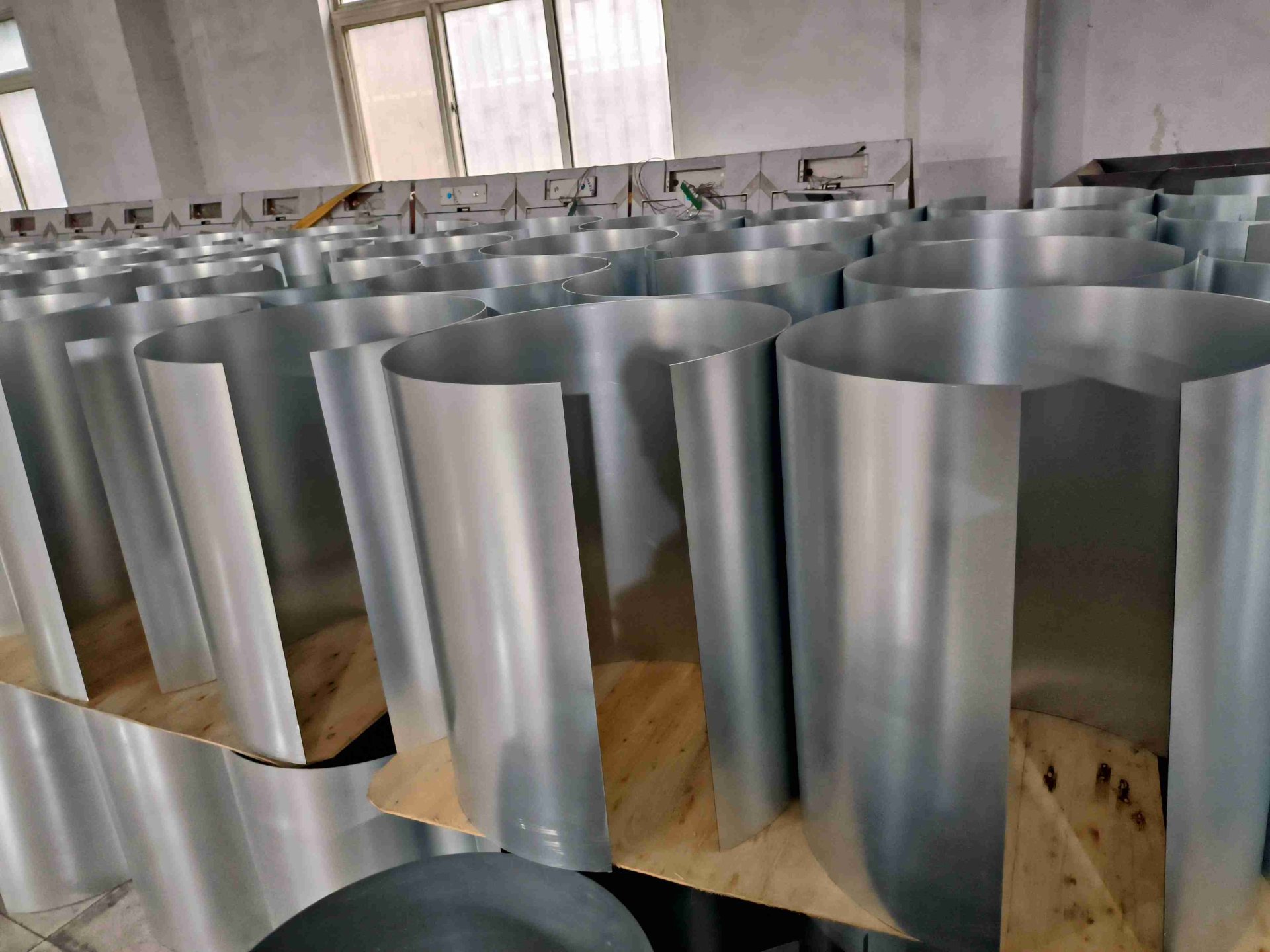

Our chutes are constructed of 16 gauge standard stainless steel, SS316, SS304, or any material customized, ensuring corrosion resistance and durability. We strongly recommend the use of stainless steel 304, 316 for the manufacture of garbage chutes and linen chute. The smooth interior surfaces reduce friction and blockages. Chute sections are welded vertically for airtight joints, with beading ribs added to strengthen the structure. The entire inner surface area is smooth and free from any projections that will impede the free flow of refuse within the total vertical length of the chute.
Modern garbage chutes are integrated with fire safety systems, including UL-rated intake doors and discharge doors equipped with fusible links that close automatically during high temperatures. We furnish one U.L. approved 1/2″, 155° automatic brass sprinkler head above the top intake door of each chute, complete with a fitting for connection by a plumber. Ventilation systems extend above rooftops to dissipate odors and gases. The purpose of a vent is to dissipate odors, as well as to dissipate hot gases in the event of a fire within the chute.
Garbage chutes significantly reduce human contact with waste by allowing residents to dispose of trash without leaving their floor. Efficiency: Residents can dispose of waste on each floor, avoiding frequent trips up and down. This minimizes exposure to potentially harmful pathogens or contaminants commonly found in communal bins.
Odor control is achieved through sealed intake doors and ventilation systems that direct unpleasant smells away from living areas. The stench is continuously driven away from the chute. Furthermore, cleaning systems such as flushing heads and disinfectant spray units are installed to sanitize internal surfaces regularly. The D&S unit is located at the top center position of your chute system. When activated, the water mixed with the disinfectant sprays the inside of the chute for 20 minutes.
By directing all refuse into a closed vertical shaft instead of open bins on each floor, garbage chutes help prevent pest infestations like rodents or insects. Environmental Hygiene: Reduces waste accumulation, preventing odors and pest breeding. The use of sealed bags during disposal further limits leakage or food residue that could attract pests.
Garbage chutes provide unmatched convenience in high-rise living environments by offering quick disposal points on every floor. It is a very convenient, simple, and low-cost method of controlling and disposing of refuse. This ease of use encourages timely waste disposal rather than accumulation inside apartments.
Since trash is funneled directly into centralized bins or compactors at ground level, janitorial staff no longer need to collect garbage door-to-door. Solid waste in your building has been brought down to street level with a dedicated waste chute and the compactor. This reduces labor requirements while improving building cleanliness.
Automated cleaning functions integrated into modern trash chute systems reduce maintenance downtime. Optional brushing systems scrub internal walls automatically using water mixed with chemicals. The brush system is fixed in the topmost of the chute to start brushing the chute internal wall during washing time. Maintenance teams can also monitor system status via LCD panels located on main control boards.
Advanced systems feature bi-sorter or tri-sorter mechanisms that allow residents to separate recyclables directly at intake points using keypad buttons. The tenants select which type of material will be discarded and push the right button, and the Recycling System diverts the waste accordingly to the designated receptacle or compactor. This promotes environmental responsibility without requiring complex logistics.
By reducing odor spread, pest presence, visual clutter from hallway bins, and manual handling risks, garbage chutes enhance overall hygiene standards within multi-story buildings. Our products are widely used in residential, commercial buildings, hotels, and hospitals, providing efficient, eco-friendly, and safe waste management solutions.
Building specifications determine optimal shaft diameter (minimum 24″ per NFPA), number of intake doors per floor, fire safety components required per level, etc. However, the NFPA (National Fire Protection Association) requires a minimum diameter of 24 inches (600 mm). Higher occupancy may necessitate additional features like compactors or sorter systems.
Trash chute installations must align with local codes regarding fire safety (UL-rated doors), sanitation protocols (cleaning/disinfection), ADA compliance (intake door handles), etc. Complies with building codes, NFPA-82, and ASTM standards.
Chute designs vary based on intended use—trash vs linen vs recycling—and structural constraints such as wall thicknesses or offset requirements between floors. Customization options include intake door styles (bottom-hinged/side-hinged), interlocking mechanisms (safe vs secure types), sorter integration options, etc. We provide tailored solutions based on customer-specific needs, ensuring that they meet the customer’s exact requirements.
Q: What should not be disposed through garbage chutes?
A:Do not dispose of flammable, explosive, toxic, or hazardous materials. Avoid large items that may clog shafts.
Q: How often should cleaning be performed?
A:Regular cleaning and maintenance should be determined based on usage and specific building requirements.
Q: Can these systems be customized?
A:Yes, we offer customized services, including product size and functional configurations.
Q: Are these systems fire-safe?
A:Products are designed in compliance with fire safety. Fire-rated discharge doors automatically close when temperatures reach critical levels.
