A garbage chute is not just a vertical shaft that moves waste downward. In practice, it is also an air pathway that can carry odors, moisture, and pressure changes through a building if the system is not controlled. A properly designed trash chute ventilation system or garbage chute duct supports cleaner air movement, better odor containment, and more stable hygiene conditions around the chute.
A garbage chute ventilation system represents the airflow portion of the chute assembly. It connects the chute shaft to an exhaust route. This setup gives the air inside the shaft a clear discharge path. Typically, this path goes upward through a ventilation chute and exits at a regulated outlet.
Proper ventilation must be viewed as an integral part of the garbage chute system. It is never just an optional extra. The installation process includes chute setup, electrical wiring, and fireproofing. It also involves setting up the ventilation systems and conducting thorough system testing.
Odors do not stay fixed to the waste mass. They move with air, especially when residue, grease, food waste, and moisture remain on chute walls. Removing trash bags does not remove the odor source if contamination remains inside the shaft.
Controlled airflow helps direct air through the intended route instead of allowing it to escape through chute doors or other openings. This approach supports odor containment and helps maintain more stable conditions inside the shaft. The actual airflow arrangement depends on the building layout, chute configuration, and overall system design.
Every time an intake door opens, the airflow status shifts. In taller buildings, the stack effect and floor-to-floor pressure differences make these shifts stronger. A properly designed ventilation system helps manage these changes and reduces unwanted airflow through door gaps and surrounding areas.

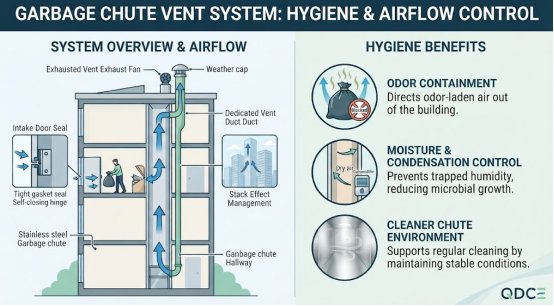

How a Garbage Chute Vent System Improves Building Hygiene
Effective ventilation provides odor-filled air with a guided path. It stops the air from drifting aimlessly. This method differs greatly from simply masking bad smells with air fresheners. True odor control in a chute system relies on containing and exhausting the air. This air carries food residue, grease, moisture, and organic waste.
Residue inside the chute can affect the air quality near intake points. If airflow remains uncontrolled, odors and other unwanted air can pass through doors into occupied zones. Ventilation performs best when paired with tight door seals and a regular cleaning and disinfection system. Always close the chute door after throwing away waste to help stop odors from spreading.
Weak airflow can trap humidity inside the shaft. This trapped moisture can encourage condensation inside the shaft or near the vent sections. Constant moisture can contribute to microbial growth, rust, and worse odor problems. Good ventilation aids in moisture management. However, it does not replace regular cleaning, disinfection, washdown routines, or proper drainage design.
Steady airflow helps keep internal conditions stable. This stability supports a complete hygiene program. Such a program includes cleaning, disinfection, waste handling, and routine inspection. A garbage chute system can also incorporate a Fresh Air Filter Box where additional air filtration is required by the project. Frequent cleaning and proper maintenance of the trash chute system are highly recommended to ensure it functions perfectly.

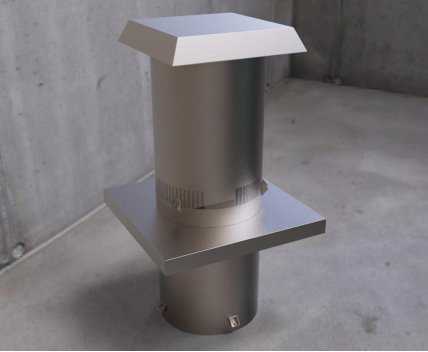

The vent pipe carries air from the chute shaft to the outlet. Size and routing matter because an undersized, damaged, or obstructed garbage chute duct can restrict airflow and weaken odor control. The vents are made the same diameter as the chute and extend above the finished roof per NFPA recommendations. Vents are constructed of 16-gauge stainless steel and are complete with roof flashing and a metal weather cap.
The outlet is where contaminated air is discharged. Its function is simple, but discharge conditions affect performance. The opening must remain unobstructed and positioned so the system can exhaust as intended.
Air moves because of pressure differences. Some systems rely mainly on natural draft and temperature differences, while others use fans for more controlled exhaust. A Fresh Air Filter Box can also be incorporated where the project requires additional air filtration. The appropriate configuration depends on the building, chute layout, and overall system requirements.
Ventilation performance depends heavily on door condition. Worn gaskets, misalignment, or doors that do not self-close create uncontrolled leakage paths. Our self-closing intake doors are made from 16-gauge brushed stainless steel on both front and back. These doors hold an important job in keeping the fire rating of the shaft intact. They also stop odors from escaping into nearby spaces.
Garbage chute ventilation cannot be separated from fire and smoke protection. Safety Design: Equipped with fire dampers and interlocking devices to ensure safe operation. Products are designed and manufactured in compliance with fire safety, environmental, and international quality standards.
Check for blockage, corrosion, impact damage, and debris at the vent path and outlet. Confirm the airflow route remains open.
If odors keep returning, test airflow and pressure performance against the system design instead of assuming surface cleaning is enough. Recurring odor problems should also be evaluated together with chute cleanliness, door seals, moisture, and waste residue.
Check door closing action, hinges, latches, and gaskets. Each door is equipped with a chrome-plated T-handle with lock & two keys, UL fire-rated latching mechanism and stainless steel pivot hinge, and an L handle is available, with ADA compliance.
For mechanical systems, inspect fans, controls, wiring, and related parts on a scheduled basis. The maintenance service includes cleaning, system inspection, and replacement of consumables.
Pair ventilation inspection with routine chute cleaning and disinfection where practical. A cleaning and disinfection system helps remove waste residue, grease, and other contaminants that airflow control cannot eliminate. Keeping maintenance records can also help identify repeated odor, moisture, or airflow issues.
Taller buildings usually present more complex pressure relationships. Waste volume and door usage frequency also affect vent design.
Review shaft diameter, number of intake points, discharge arrangement, and available exhaust routing. Chutes are available in 36″, 30″, and 24″ diameters or any size customized.
Ventilation design must work with fire-rated doors, smoke control provisions, and code requirements. It should also be considered alongside cleaning and disinfection equipment and, where required, a Fresh Air Filter Box to support the building’s overall hygiene strategy.
Service access to fans, ducts, outlet points, cleaning equipment, and other system components should be built into the design from the start.
Persistent odors despite normal waste collection indicate a problem. Strong odor differences between floors, visible condensation, and blocked outlets are clear warning signs. Noticeable airflow shifts when doors open, strange fan noises, repeated occupant complaints, and rust around vent components also demand immediate attention.
If you are planning a new project or troubleshooting an existing shaft, you can easily request technical support. You can upload drawings or get a fast quote from QDCE.
No. Ventilation helps contain and manage odors, but residue, moisture, poor cleaning, and damaged door seals can still create odor problems.
Common causes include blocked vents, damaged duct sections, fan failure, poor system sizing, pressure imbalance, and leaking intake doors.
No. Ventilation controls air movement; cleaning and disinfection remove residue, grease, and other contaminants.
Inspection frequency depends on system type, building use, manufacturer guidance, and local requirements. Routine inspection is better than using a one-size-fits-all interval.
Yes. Inadequate airflow can allow humidity and condensation to build up, which can worsen residue adhesion, odor, and corrosion.
