Hotel laundry moves much faster when dirty linen gets a direct and secure path from guest floors down to the collection room. A properly built stainless steel laundry chute cuts down on manual lifting. It limits the need for service elevators. Furthermore, it supports strict hygiene control. Ultimately, it helps hospitality teams handle linen flow with greater safety and overall efficiency.
Hotel housekeeping staff manage towels, bed sheets, robes, uniforms, and cleaning rags daily. Hauling these bulky items through public corridors or service elevators consumes valuable time. It also risks exposing pristine areas to dirty fabrics. A dedicated laundry chute system provides a vertical transport path within a secure shaft. This keeps fabric movement totally isolated from guest-facing zones.

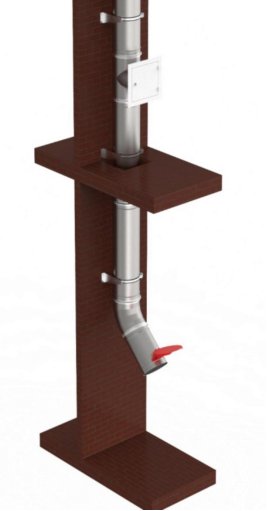

A commercial hotel laundry chute is never just a simple pipe. It has to handle large capacities, fire separation, odor drift, door access, regular cleaning, impact noise, and routine upkeep.QDCE creates functional chute setups using sturdy stainless steel sections, fire-rated intake doors, and floor interlocking mechanisms. They also include ventilation components, secure support brackets, fire cut-off doors, and optional sanitizing units meant for hotels and multi-story buildings.
A hotel stainless steel laundry chute must withstand constant humidity, harsh detergent residues, thick textile lint, and hard impacts from heavy linen bags. It also faces frequent washdowns. QDCE typically utilizes Stainless Steel 304. Meanwhile, Stainless Steel 316 remains available for building projects demanding superior corrosion defense. Stainless steel lacks any surface coating that might flake off. Additionally, its incredibly smooth finish helps minimize lint buildup, odor trapping, and maintenance hassles.
For standard hotel projects, a 600 mm (or 24 inch) chute diameter serves as a highly practical choice for oversized linen bags. A 1.5 mm stainless steel wall thickness significantly boosts impact strength and ensures long-lasting durability.
System Item | Typical QDCE Parameter | Operational Impact |
Main chute diameter | 600 mm / 24 inch | Accommodates large hotel linen bags |
Commercial chute thickness | 1.5 mm SUS304-2B | Enhances overall impact strength |
Residential diameter range | 300-400 mm | Suits private homes and villas |
Chute section length | 1200 mm, 600 mm, or custom 100-600 mm | Aligns with specific floor heights |
Intake door opening | 510 mm x 510 mm | Permits easy fabric loading |
Fire cut-off link | 165°F / 74°C | Shuts the discharge door during fire events |

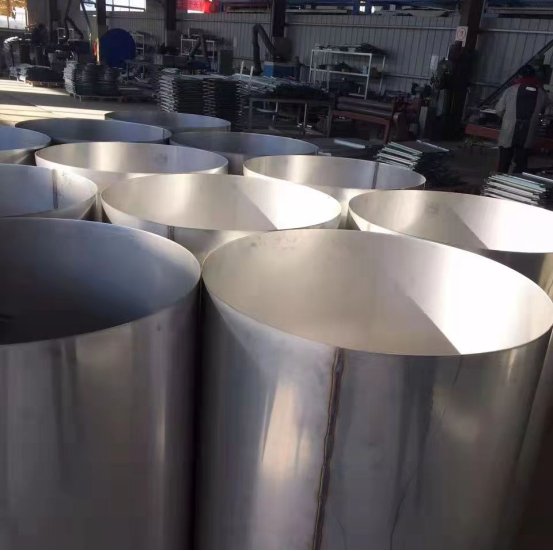

Sleek chute interiors are absolutely vital. Linen can easily snag on bare screws, uneven welds, sharp edges, or poorly aligned joints. QDCE chute segments feature exceptionally smooth inner walls and fully welded vertical seams. This design guarantees unobstructed dropping across the entire shaft height.
Quick-release clamps connect the upper and lower chute parts firmly together. Beaded ribs reinforce the metal walls and upgrade the joint seals. When every connection is aligned and sealed properly, the tube rarely traps wet lint or fabric corners. This fact is crucial for sanitation. Trapped lint harbors dust particles, old soap chemicals, and bad smells.
Contractors should utilize bends cautiously. QDCE provides 15°, 30°, and 45° elbows for jobs where the structural layout forces a route shift. During hotel planning, we examine the shaft pathway early on. Too many bends will slow down falling laundry, amplify banging noises, and generate extra service spots.
A laundry chute fire hazard poses a severe threat. A vertical tunnel can easily spread toxic smoke, intense heat, or open flames across multiple levels if left unprotected. Proper fire defense relies heavily on certified intake doors, bottom discharge safeguards, smart sprinkler layouts, solid shaft walls, and direct ties to the main building alarm network.

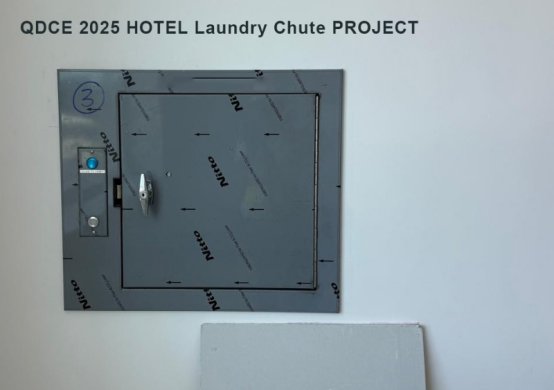

QDCE intake doors feature UL Class 10B certifications alongside a reliable 1.5-hour fire rating. The side-hinged, self-closing, and self-latching hardware ensures the door shuts firmly after every single use. Heat-expanding intumescent strips seal off perimeter gaps during high-temperature emergencies. They also assist in blocking everyday noise.
The vital fire cut-off discharge door sits at the very bottom of the drop. A UL-listed fusible link, rated at 165°F / 74°C, keeps it propped open. If a fire breaks out inside the collection room and melts that specific link, the heavy door slams shut to block the upward path. This part acts strictly as an emergency safety mechanism, not a routine locking hatch.
Sanitary operation demands proper airflow alongside convenient service entry. Rooftop exhaust vents pull stale odors and damp air out of the vertical column. A standard exhaust kit features a stainless steel vent pipe, a protective rain cap, a wire mesh screen for birds and bugs, and a waterproof flashing base. These specific parts shield the interior from heavy rain, unwanted pests, and roof leaks.
Technicians can mount a disinfection and sanitizing device near the top center of the shaft. QDCE setups often incorporate a solenoid valve, a chemical proportioning valve, a 5-liter plastic storage jug, and a specialized spiral nozzle. The spiral nozzle sprays liquid evenly down the inner walls. Meanwhile, the proportioning valve regulates the exact chemical mixture. This feature proves incredibly useful in busy resorts where massive linen volumes and lingering odors directly impact guest satisfaction.
QDCE support brackets utilize thick 40 mm x 40 mm x 5 mm angle iron paired with thick rubber isolator blocks, metal washers, rubber gaskets, and heavy-duty expansion bolts. The rubber isolation blocks absorb the harsh shocks whenever heavy laundry bags strike the metal walls or the lower discharge ramp. Sturdy brackets also maintain perfect vertical alignment. Crooked installations cause repeated banging, louder echoes, and a much higher chance of fabric jams.
Purchasing managers should evaluate the laundry chute as a complete system before finalizing any order.
Buyer Checkpoint | Recommended Review |
Material | SUS304 as the baseline; SUS316 for aggressive coastal or chemical environments |
Diameter | 600 mm for the vast majority of commercial hotel needs |
Door rating | UL 10B, 1.5-hour fire-rated loading doors where building codes dictate |
Door behavior | Side-hinged, automatically closing, and automatically latching |
Fire discharge | Fusible link fire cut-off door located at the basement collection point |
Controls | Electronic interlocking, safety emergency mode, and secure maintenance lockout |
Hygiene | Seamless interior finish, optional chemical sanitizing, and dedicated cleaning hatches |
Ventilation | Rooftop exhaust fan equipped with a rain shield and bug screen |
Installation | Detailed shop drawings, careful shaft coordination, and strict local code compliance |
Stainless steel stands out as the top choice. It fights off moisture, rust, physical dents, and harsh daily scrubbing. SUS304 works perfectly for most standard properties. Conversely, builders select SUS316 for areas facing severe corrosive elements.
A 600 mm, or 24 inch, diameter remains the industry standard for hospitality venues. It provides massive bath towels, thick bed sheets, and stuffed canvas bags with plenty of clearance to drop without snagging.
Property managers can effectively minimize a laundry chute fire hazard by installing certified fire-rated intake doors. They must use self-closing and self-latching hinges. They also need a fusible link fire cut-off door at the bottom. Furthermore, they should add internal sprinklers, apply proper shaft firestopping, and link the electronic controls directly to the central building alarm panel.
Yes, absolutely. Even though stainless steel wipes down effortlessly, the vertical tube still requires scheduled visual checks. Staff must remove stuck lint and manage stale odors. They should also run the optional sanitizing spray. Flawless inner walls, handy access panels, active roof ventilation, and automated wash nozzles make this routine upkeep much simpler.
